Blast Resistant Modules

Our Blast Resistant Module was field tested for a 5 psi (200 msec duration) blast. The test blast utilized a 1250+ high explosive ANFO charge, at a standoff distance of 110 ft. The blast tested module was constructed to our standard spec, with roof and wall panels strengthened with tube steel stiffeners. The module survived with no structural damage.

These engineered personnel and storage blast resistant modules can be designed to meet your specific needs with configurations for Controlled Entry Point Offices, Equipment/Sensitive Substance Storage, Restrooms, and numerous other applications.

All components were found to respond at or below "low-medium" range of damage when subjected to a 5 psi free-field blast load with 200 msec duration. Damage to non-structural components such as conduit pipes, light fixtures, HVAC unit and interior sheathing is expected to be minor under the 5 psi free-field blast load with 200 msec duration. P-I diagrams for the primary structural components were provided; these diagrams would allow computing the response of the component under any blast load. Connections were also designed to resist 5 psi blast load with 200 msec duration.

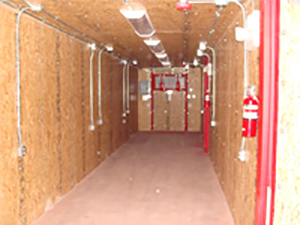

8' Wide Blast Resistant Module

Our 8 foot wide Blast Resistant Modules are engineered to meet or exceed API 753 keeping your workforce safety in mind. Free-field blast tested, our 8 foot wide Blast Resistant Buildings are engineered for temporary or permanent office structures. These BRMs are available in our standard leasing sizes of 8x10 (guard shack), 8x20, 8x40 with an open floor plan. These Blast Resistant Modules are most often used when space is at a premium on your worksite.

  • API 753 Compliant
  • Engineered for 8 psi 200 msec Blast
  • ASCE Low to Medium Response
  • Steel Reinforced Roof and Wall Panels
  • Tamperproof Shielded Flourescent Overhead Lighting
  • Two 3-inch Ports for Incoming Electrical and Communication Services
  • Rubberized Roof Coating
  • ISO Lift and Tie Down Points at Each Corner
  • OSB Board Interior Walls and Ceilings
  • Dual HVAC Heating and Cooling
  • CAT 5e Phone Jacks and Computer Ethernet Jacks

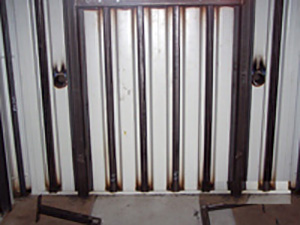

12' Wide Blast Resistant Module

We have engineered the 12 foot wide Blast Resistant Module to meet or exceed API 753 keeping your workforce safety in mind. Free-field blast load engineered, our Blast Resistant Buildings are manufactured for temporary or permanent structures. The BRM offices will provide you with a safe stress free worksite solution. Available in our standard leasing size of 12x40 or purchase your twelve foot wide BRMs in the length that fits your needs.

  • API 753 Compliant
  • Engineered for 5 psi 200 msec Blast, 8 psi 50 msec Blast, and 10 psi 25 msec Blast
  • ASCE Low to Medium Response
  • Steel Reinforced Roof and Wall Panels
  • Tamperproof Shielded Flourescent Overhead Lighting
  • OSB Board Interior Walls and Ceilings
  • Ceramic Paint Rated for R-13 or Better
  • CAT 5e Phone Jacks and Computer Ethernet Jacks
  • Dual HVAC Cooling and Heating
  • Two Steel Reinforced Doors on Non-Blast Wall

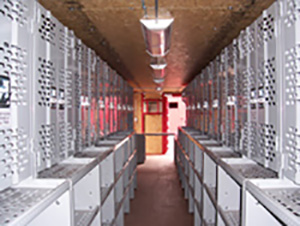

Tool Crib Blast Resistant Module

We have manufactured and engineered the Blast Resistant Module Tool Crib keeping your workforce safety and productivity in mind. The Blast Resistant Building Tool Crib meets or exceeds API's 753 guidelines. All above counter shelving is equipped with locking latches and blast doors. Your workforce will appreciate the ease and convenience of having tools, parts, and substances in their blast zone workplace.

  • API 753 Compliant
  • Engineered for 8 psi 200 msec Blast
  • ASCE Low to Medium Response
  • Steel Reinforced Roof and Wall Panels
  • Tamperproof Shielded Flourescent Overhead Lighting
  • Added Lighting Workbench Area
  • Compressed Air Inlets
  • Chain Fall and Equipment Tool Racks for a Variety of Tools
  • Wired for Electrical and Data
  • Dual HVAC Heating and Cooling
